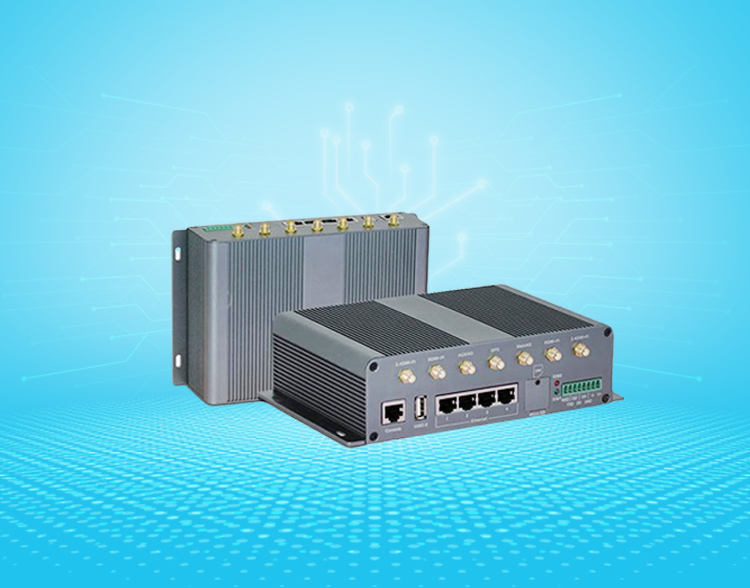

ADV90
Adv90 is the fourth offering from our extensive industrial router portfolio. It is the flagship router that we offer, with the most advanced set of specs and features. With the power of a dual-core industrial ARM processor, this router will always be able to uphold your network. 4-gigabit ethernet, backward compatibility with WCDMA, support for various bands for 4G LTE and GSM frequencies. Software features like equipment self-checking are also available for the router to always stay up-to-date.
Model Specific Features -
- One console port.
- Real time line monitoring.
- Remote management and upgrade.
- Standard speeds up to 300mpbs, with optional speeds going up to 833mbps.
- Support for FDD-LTE Bands 1/2 /3/4/5/7/8/20, Bands 2/4/5/13/17/25/26, TDD-LTE Bands 38/39/40/41
Here’s the full set of specifications for Adv90 -
Wireless specification
| Description | Adv90 |
| Standard Bandwidth | ·IEEE802.11n/ 802.11ac standard |
| ·300Mbps / 833Mbps (optional) | |
| Safety/ Security | ·Supports WEP, WAP, WPA2, WPS |
| Transmitted Power | ·16-17 dBm (11g), 18-20 dBm (11b), 15 dBm (11n) |
| Receive Sensitivity | ·<-72 dBm@ 54 Mpbs |
Wireless parameters
| Description | Adv90 |
| Receive Sensitivity | ·<-72 dBm@ 54 Mpbs |
| Frequency Range | ·5G FR1: n1, n2, n3, n5, n7, n8, n12, n20, n25, n28, n38, n40, n41,n48, n66, n71, n77, n78, n79 |
| ·4G LTE bands: 1-5, 7, 8, 12-14, 17-20, 25, 26, 28-30, 32, 34, 38-43, 46, 48, 66 and 71 | |
| ·3G WCDMA: 1, 9, 19 | |
| Bandwidth | ·FDD: 100 / 50 Mbps , TDD: 61 / 18 Mbp |
| Transmitted Power | ·<24 dBm |
| Receive Sensitivity | ·<-72dBm |
Interface Type
| Description | Adv90 |
| LAN | ·4 LAN interface |
| ·Built-in electromagnetic isolation protection | |
| ·Full Duplex, 10/100/1000 Mbit/s | |
| WAN | ·1 WAN/LAN interface multiplex |
| ·Console Port (for out of band range) | |
| ·Built-in electromagnetism insulation blocking | |
| Industrial Interface | ·1x RS485/RS232 port |
| ·Self-adaption MDI/MDIX | |
| Industrial light | ·WLAN |
| ·WAN | |
| ·LAN | |
| ·NET (RGB) | |
| Antenna Interface | ··7x SMA interface (4G MIMO; 2.4G Wi-Fi x 2; 5.8G Wi-Fi x 2; GPS/BD; Main) |
| ·Characteristic impedance 50 ohms | |
| SIM/UIM | ·SIM/UIM card with shed protection design |
| ·1.8V/3V automatic detection, | |
| Power Source | ·7.5V~32V |
| USB | ·USB2.0, used for external data storage or system upgrading |
| GPIO | ·2x GPIO input signal detection and 1x GPIO output instruction |
| Dimension |
Environment conditions
| Description | Adv90 |
| Operating temperature | ·-30°C~75°C |
| Storage temperature | ·-40°C~85°C |
| Operating Humidity | ·95% (Unfreezing) |
| Voltage range | ··DC 12V/2A |
