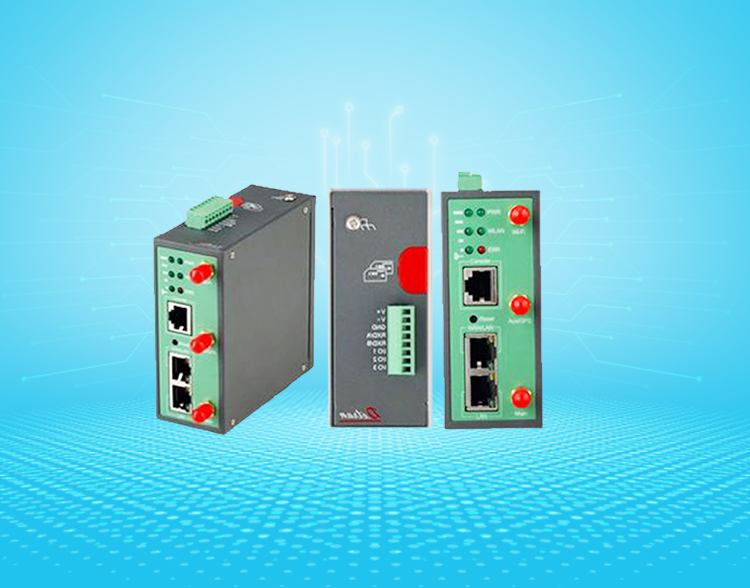

ADV21
Adv21 is the second offering from our extensive industrial router portfolio. It comes with LTE connectivity along with support for multiple 4G bands. Backward compatibility with WCDMA network frequencies, along with GSM is available with this model. It also supports both WAN and LAN to go well along with our comprehensive Network Management System (NMS) services.
Model Specific Features -
- Speed up to 100mbps
- Dedicated equipment monitoring port
- Dual SIM option
- LTE 4G band support for Band 1/3/5/7/8/20
- GSM/GPRS/EDGE frequencies supported 1900MHz/1800MHz/900MHz/850MHz
- WCDMA frequency support for 2100MHz/1900MHz/900MHz/850MHz
Here’s the full set of specifications for Adv21 -
Wireless specification
| Description | Adv21 |
| Standard Bandwidth | ·150 Mbps, supports IEEE802.11b/g/n standard |
| Safety/ Security | ·Supports WEP, WAP, WPA2, WPS |
| Transmitted Power | ·16-17 dBm (11g), 18-20 dBm (11b), 15 dBm (11n) |
| Receive Sensitivity | ·<-72 dBm@ 54 Mpbs |
Wireless parameters
| Description | Adv21 |
| Receive Sensitivity | ·<-72 dBm@ 54 Mpbs |
| Frequency Range | ·5G FR1: n1, n2, n3, n5, n7, n8, n12, n20, n25, n28, n38, n40, n41,n48, n66, n71, n77, n78, n79 |
| ·4G LTE bands: 1-5, 7, 8, 12-14, 17-20, 25, 26, 28-30, 32, 34, 38-43, 46, 48, 66 and 71 | |
| ·3G WCDMA: 1, 9, 19 | |
| Bandwidth | ·MAX DL: 100Mbps |
| ·MAX UL: 50Mbps (Category 3, MIMO) | |
| Transmitted Power | ·<23dBm+/-1dB |
| Receive Sensitivity | ·<-97dBm @10MHz QPSK |
Interface Type
| Description | Adv21 |
| LAN | ·1 LAN interface |
| ·Built-in electromagnetism insulation blocking | |
| ·Full Duplex, 10/100 Mbit/s | |
| WAN | ·1 WAN/LAN interface multiplex |
| ·Built-in electromagnetism insulation blocking | |
| Industrial Interface | ·Equipment monitoring port |
| ·Self-adaption MDI/MDIX | |
| ·RJ45 interface supports hardware flow control RS232 communication mode | |
| Industrial light | ·WLAN |
| ·WAN | |
| ·LAN | |
| ·NET (RGB) | |
| Antenna Interface | ·1 Main antenna interface (3G/4G) |
| ·Characteristic impedance 50 ohms | |
| ·1 Aux/GPS antenna interface, used as 3G/4G AUX antenna or GPS function active antenna; 1 WiFi 802.11n | |
| ·antenna interface | |
| SIM/UIM | ·SIM/UIM engineering card cover |
| ·1.8V/3V automatic detection, | |
| ·Support Dual Sim | |
| Power Source | ·7.5V~30V (standard DC 12V/1.5A) |
| ·Built-in power instantaneous overvoltage protection and opposite connection protection | |
| USB | ·NA |
| GPIO | ·NA |
| Dimension |
Environment conditions
| Description | Adv21 |
| Operating temperature | ·-30°C~75°C |
| Storage temperature | ·-40°C~85°C |
| Operating Humidity | ·95% (Unfreezing) |
| Voltage range | ·DC 12 ~ 26V/1.5A |
